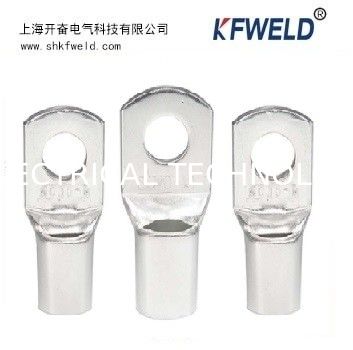

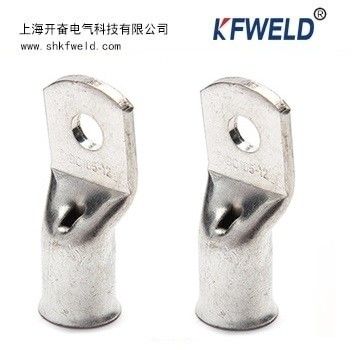

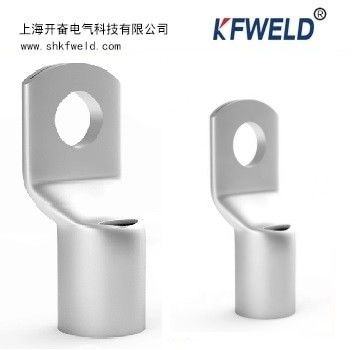

SC Tinned Copper Cable Lug, Cable Terminal, high quality, best price on sales
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| المواد: | النحاس أو النحاس المعلب | النوع: | SC |
|---|---|---|---|
| الحجم: | كابل كهربائي 1.5-1000 مم 2 |
يصلح سقف الكابل النحاسي المحتفظ به للاتصال بالموصل النحاسي للأسلاك من نوع الكابل الكهربائي مع الكابل الكهربائي ذو القطع العرضي الاسمي 1.5-1000mm2.على أساس المحطة النحاسية الأصلية SC peephole، يتم طبقة من الصلب على الطبقة السطحية، ويتم استخدام محطة النحاس المحفوفة SC المحفوفة للثقب للنحاس لربط الطرف النحاسي من كابل النحاس الأساسي والمعدات الكهربائية.
| النموذج | حجم الكابل (ملم2) | حجم القضبانΦ ((ملم) | البعد(ملم) | |||||
| (ل) | L1 | W | T | د | د | |||
| KF-SC1.5-4 |
1.5 |
4.3 | 18 | 6.5 | 7.5 | 1.0 | 3.1 | 1.9 |
| KF-SC1.5-5 | 5.2 | 18 | 6.5 | 8.0 | 1.0 | 3.1 | 1.9 | |
| KF-SC2.5-4 |
2.5 |
4.3 | 19 | 7.0 | 8.0 | 1.0 | 4.0 | 2.8 |
| KF-SC2.5-5 | 5.2 | 19 | 7.0 | 8.0 | 1.0 | 4.0 | 2.8 | |
| KF-SC2.5-6 | 6.5 | 20 | 7.0 | 9.2 | 1.0 | 4.0 | 2.6 | |
| KF-SC4-4 |
4 |
4.3 | 19.5 | 7.5 | 8.0 | 1.0 | 4.5 | 3.2 |
| KF-SC4-5 | 5.2 | 20.5 | 7.5 | 8.0 | 1.0 | 4.5 | 3.2 | |
| KF-SC4-6 | 6.5 | 22 | 7.5 | 9.2 | 1.0 | 4.5 | 3.2 | |
| KF-SC6-5 |
6 |
5.3 | 22 | 8.0 | 9.2 | 1.0 | 5.3 | 3.7 |
| KF-SC6-6 | 6.4 | 24.4 | 9.2 | 9.8 | 1.0 | 5.5 | 4 | |
| KF-SC6-8 | 8.5 | 24.4 | 9.4 | 12 | 1.0 | 5.5 | 4 | |
| KF-SC10-6 |
10 |
6 | 25.1 | 9.7 | 9.9 | 1.6 | 6.9 | 5 |
| KF-SC10-8 | 8.2 | 25.6 | 9.8 | 11.7 | 1.4 | 6.9 | 5 | |
| KF-SC10-10 | 10.2 | 25.6 | 9.9 | 12 | 1.4 | 7 | 5 | |
| KF-SC16-6 |
16 |
6.3 | 29.5 | 11.7 | 10.7 | 1.7 | 7.4 | 5.5 |
| KF-SC16-8 | 8.1 | 31.5 | 13.4 | 12.6 | 1.8 | 8 | 5.5 | |
| KF-SC16-10 | 10.2 | 29.9 | 12 | 14.2 | 1.3 | 7.4 | 5.5 | |
| KF-SC25-6 |
25 |
6.1 | 34.7 | 14.7 | 14 | 2.2 | 9.4 | 6.9 |
| KF-SC25-8 | 8.3 | 35.5 | 14.6 | 13.5 | 2.3 | 9.5 | 6.9 | |
| KF-SC25-10 | 10.1 | 35.5 | 14.6 | 14.4 | 2.2 | 9.5 | 6.9 | |
| KF-SC25-12 | 12.2 | 35.1 | 14.4 | 16.8 | 1.9 | 9.5 | 6.9 | |
| KF-SC35-6 |
35 |
6.2 | 39.8 | 17 | 15.6 | 2.8 | 11 | 7 |
| KF-SC35-8 | 8.1 | 39 | 16.1 | 16.3 | 2.4 | 11.1 | 8.3 | |
| KF-SC35-10 | 10.2 | 39.5 | 16.2 | 16 | 2.5 | 11.2 | 8.3 | |
| KF-SC35-12 | 12.2 | 39.3 | 16.2 | 16.5 | 2.4 | 11.2 | 8.3 | |
| KF-SC50-6 |
50 |
6.1 | 46.5 | 19 | 18.5 | 2.7 | 13 | 9 |
| KF-SC50-8 | 8.2 | 46.8 | 19.4 | 18.8 | 2.8 | 13 | 9.9 | |
| KF-SC50-10 | 10.2 | 46.5 | 19.2 | 18.9 | 2.7 | 13 | 10 | |
| KF-SC50-12 | 12.2 | 46.5 | 19.3 | 19.1 | 2.8 | 13 | 10 | |
| KF-SC70-8 |
70 |
8.1 | 52.4 | 20.3 | 21.6 | 3.3 | 14.8 | 11.3 |
| KF-SC70-10 | 10.2 | 52.5 | 21.1 | 22 | 3.3 | 15 | 11.4 | |
| KF-SC70-12 | 12.2 | 52.1 | 20.5 | 22 | 3.3 | 15.1 | 11.2 | |
| KF-SC95-8 |
95 |
8.1 | 57 | 22.5 | 25.4 | 3.4 | 17.5 | 13.7 |
| KF-SC95-10 | 10.2 | 57 | 22.5 | 25.3 | 3.6 | 17.5 | 13.7 | |
| KF-SC95-12 | 12.3 | 57 | 22.6 | 25.5 | 3.4 | 17.5 | 13.8 | |
| KF-SC95-14 | 15 | 57 | 23.5 | 24.8 | 3.6 | 17.5 | 13.8 | |
| KF-SC95-16 | 17 | 57 | 23.5 | 24.8 | 3.6 | 17.5 | 13.8 | |
| KF-SC120-8 |
120 |
8.3 | 62.6 | 21.9 | 27.2 | 3.8 | 19 | 14.7 |
| KF-SC120-10 | 10.3 | 66.1 | 26.4 | 28 | 4.1 | 19.3 | 14.7 | |
| KF-SC120-12 | 12.3 | 66.3 | 27 | 28 | 4.3 | 19.5 | 15 | |
| KF-SC120-14 | 15 | 67 | 27 | 28.9 | 4.7 | 20 | 15.3 | |
| KF-SC120-16 | 16.3 | 67.3 | 27.2 | 28.9 | 4.7 | 20.1 | 15.3 | |
| KF-SC150-8 |
150 |
8.5 | 67.5 | 27.5 | 29.1 | 4.7 | 20 | 15 |
| KF-SC150-10 | 10.2 | 67.8 | 27.9 | 29.1 | 5 | 20.4 | 15.7 | |
| KF-SC150-12 | 12.2 | 73 | 32.7 | 30.2 | 4.3 | 21 | 16.3 | |
| KF-SC150-14 | 15 | 73 | 33 | 30.2 | 4.7 | 21 | 16.3 | |
| KF-SC150-16 | 16.2 | 73.6 | 33.1 | 30.2 | 4.7 | 21.1 | 16.3 | |
| KF-SC185-10 |
185 |
10.5 | 79.5 | 33.4 | 34.5 | 4.7 | 23.5 | 18.5 |
| KF-SC185-12 | 12.3 | 79.5 | 33.4 | 34.7 | 4.7 | 23.6 | 18.6 | |
| KF-SC185-14 | 15 | 79.5 | 33.5 | 34.7 | 5 | 23.6 | 18.6 | |
| KF-SC185-16 | 16.3 | 79.5 | 33.6 | 34.9 | 5 | 23.7 | 18.8 | |
| KF-SC240-10 |
240 |
10.5 | 81 | 32.5 | 38 | 4.5 | 26 | 21 |
| KF-SC240-12 | 13 | 81 | 32.5 | 38 | 4.5 | 26 | 21 | |
| KF-SC240-14 | 15 | 81 | 32.5 | 38 | 4.5 | 26 | 21 | |
| KF-SC240-16 | 17 | 81 | 32.5 | 38 | 4.5 | 26.3 | 21.6 | |
| KF-SC300-10 |
300 |
10.5 | 100 | 42 | 43.7 | 5.6 | 30.4 | 24.4 |
| KF-SC300-12 | 13 | 100 | 42 | 43.7 | 5.6 | 30.4 | 24.4 | |
| KF-SC300-14 | 15 | 100 | 42 | 43.7 | 5.6 | 30.4 | 24.4 | |
| KF-SC300-16 | 17 | 100 | 42 | 43.7 | 5.6 | 30.4 | 24.4 | |
| KF-SC300-20 | 21 | 100 | 42 | 43.7 | 5.6 | 30.4 | 24.4 | |
| KF-SC400-10 |
400 |
10.5 | 110 | 46 | 49.5 | 6.7 | 34 | 27 |
| KF-SC400-12 | 13 | 110 | 46 | 49.5 | 6.7 | 34 | 27 | |
| KF-SC400-14 | 15 | 110 | 46 | 49.5 | 6.7 | 34 | 27 | |
| KF-SC400-16 | 17 | 110 | 46 | 49.5 | 6.7 | 34 | 27 | |
| KF-SC400-20 | 21 | 110 | 46 | 49.5 | 6.7 | 34 | 27 | |
| KF-SC500-10 |
500 |
10.5 | 123 | 50 | 55 | 7.6 | 38 | 30 |
| KF-SC500-12 | 13 | 123 | 50 | 55 | 7.6 | 38 | 30 | |
| KF-SC500-14 | 15 | 123 | 50 | 55 | 7.6 | 38 | 30 | |
| KF-SC500-16 | 17 | 123 | 50 | 55 | 7.6 | 38 | 30 | |
| KF-SC500-20 | 21 | 123 | 50 | 55 | 7.6 | 38 | 30 | |
| KF-SC630-10 |
630 |
10.5 | 135 | 56 | 65 | 10 | 45 | 35 |
| KF-SC630-12 | 13 | 135 | 56 | 65 | 10 | 45 | 35 | |
| KF-SC630-14 | 15 | 135 | 56 | 65 | 10 | 45 | 35 | |
| KF-SC630-16 | 17 | 135 | 56 | 65 | 10 | 45 | 35 | |
| KF-SC630-20 | 21 | 135 | 56 | 65 | 10 | 45 | 35 | |
| KF-SC800-20 | 800 | 21 | 170 | 60 | 72 | 11 | 50 | 39 |
| KF-SC1000-20 | 1000 | 21 | 200 | 87 | 81 | 12 | 56 | 44 |
